Product application: suitable for industry, manufacturing, building, power station, wharf and other fields

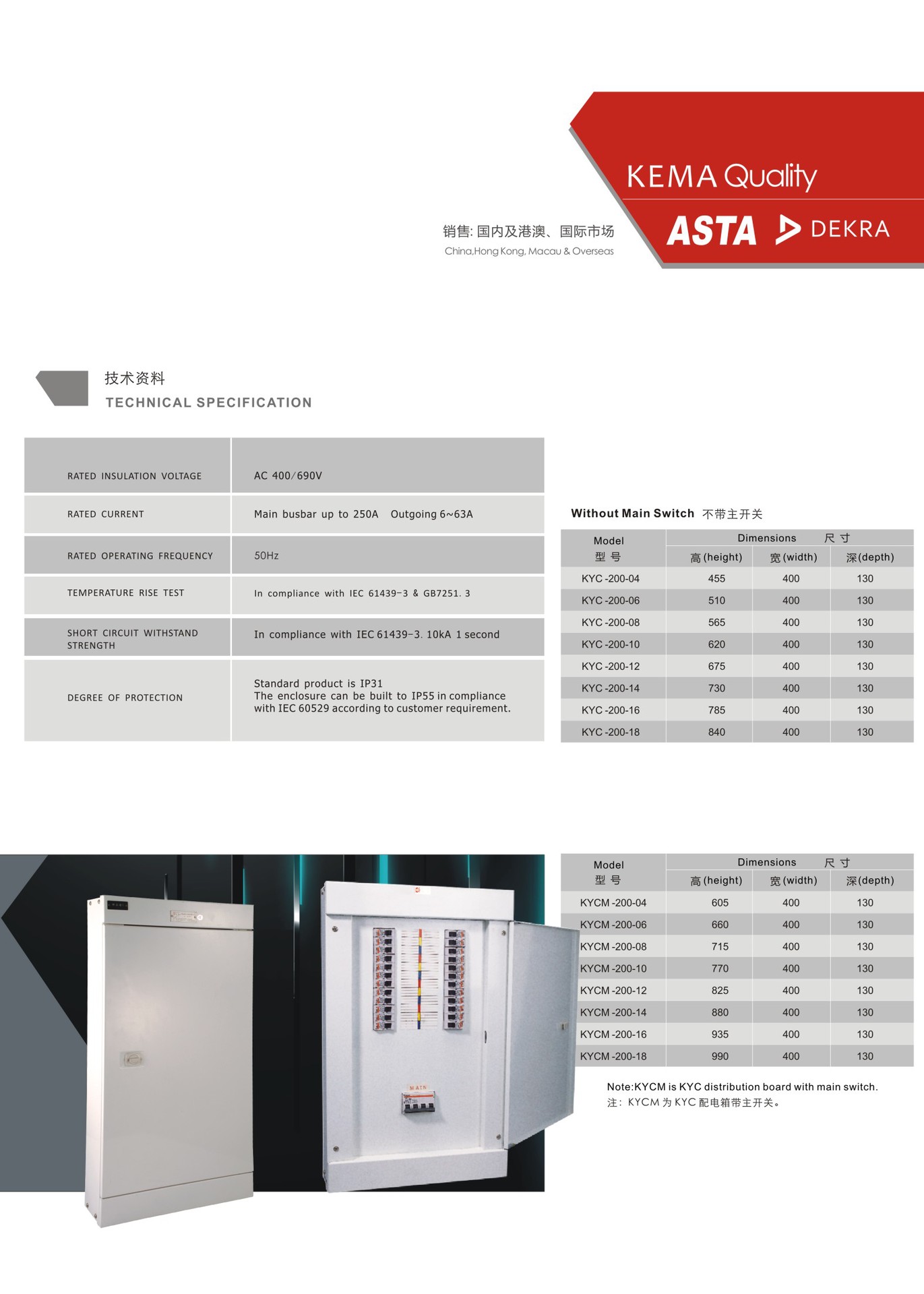

Rated working voltage and voltage (Ue): AC400V/690V

Rated current (In): 250A (highest)

Rated working frequency: 50/60Hz

Rated short-time tolerance current:

Execute 10kA 1s according to standard BSEN61439-3

Degree of Protection: Standard IP31, enclosure can be built to IP55 in accordance to IEC 60529.
